Product Introduction

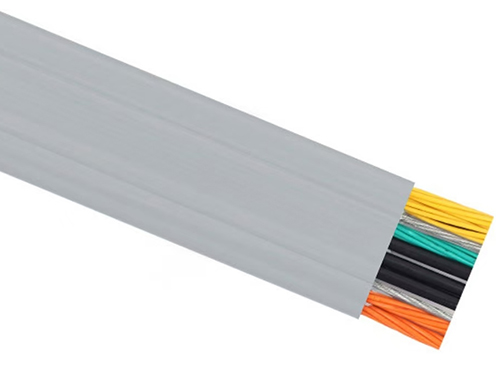

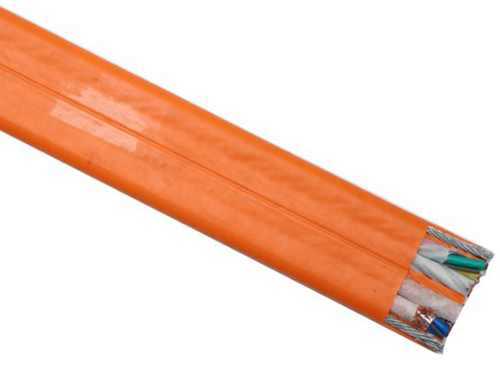

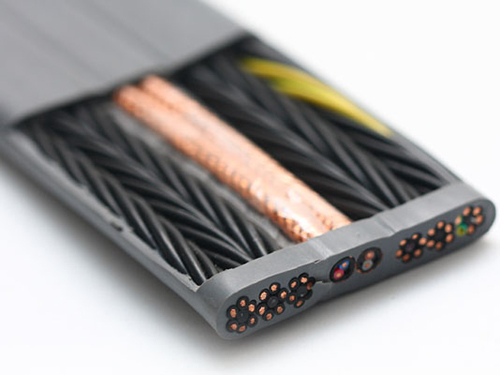

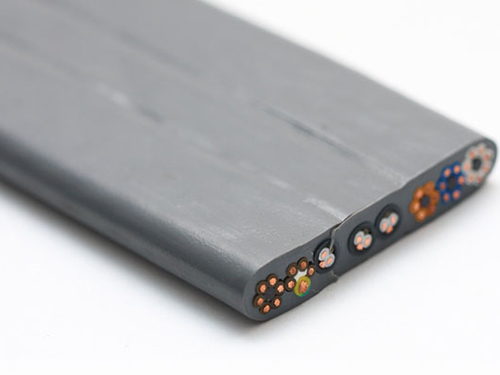

Name: Elevator Video Surveillance Cable

Conductor: High-purity oxygen-free copper wire (tinned / bare)

Insulation & Jacket: Special eco-friendly halogen-free PVC for elevator cables, low-smoke zero-halogen flame-retardant grade

Internal Structure: Optimized layout with inline arrangement, plum blossom arrangement and multi-function integrated design, ensuring balanced performance, service life and stability

Core Identification: Color coding, dot marking, number printing, custom marking available

Shielding: Aluminum foil shield, oxygen-free copper braid shield (tinned / bare)

Jacket Colors: Grey, Orange, Black

Temperature Rating: 70℃, 105℃, -30℃, -40℃, -40℃~105℃

Voltage Rating: 300/500V, 450/750V

Surveillance Compatibility: Suitable for both digital signal surveillance and analog signal surveillance

Specification List (Not fully detailed due to page limit, all elevator cable models are available for custom production as required)
